Product Description

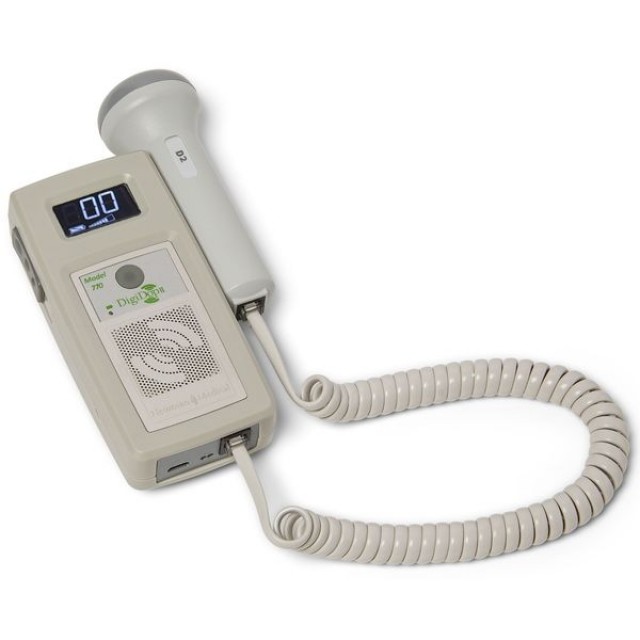

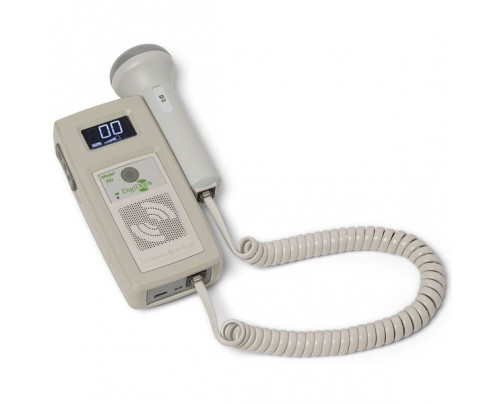

The Newman Medical Model DigiDop II DD-770 & DD-700R Fetal Dopplers have breakthrough sensitivity and size. New extended depth XD probes (U.S. Patent Pending) provide up to 56% increased sensitivity at shallow depths (2-5cm) where many early fetal hearts are located. Complementing the Newman XD probes is the state of the art Digital Optimized Processing (DOP) of the Doppler signal. The smaller size and smoothly contoured shape were meticulously designed to comfortably fit your hand and coat pocket. Great sound is maintained with new high power miniature speaker technology. The stainless micro-screen on the speaker lets the sound out and keeps dirt and paperclips from getting in. Each unit is individually tested and approved at the Newman Medical Factory in Colorado, USA. Its quality and toughness are evidenced by the Full FIVE year Newman Medical Doppler Warranty that covers the probes as well as the main unit, including both parts and labor.
Newman Medical PROMO DETAILS
Doppler Weight (with probe): 260 grams (9.2 ounces)
Size: 125x60x40mm (4.9x2.3x1.5 inches)
User replaceable coiled cord
DigiDop II Doppler accepts all Newman Medical probes 2 MHz, 3 MHz OB, 5, 8 MHz, and audio PPG vascular probes
Probe holder: Unbreakable, easy clean magnetic
Materials: Polycarbonate/ABS blends, stainless steel
Speaker: High output 40mm miniature, f0 260 Hz, 4W max
DD-770: Displays heart rate and indicates battery, volume and signal strength. 3 Premium AAA Alkaline batteries, LED backlit VATN LCD, 50-220 BPM heart rate range, battery condition, volume, real-time signal strength. Extra wide angle, contrast ratio >150:1, true black background.
DD-770R: Displays heart rate and indicates battery, volume and signal strength. 3 Premium AAA Rechargeable NiMH batteries, 2100 charging cycles, hold 80% of charge for three years when not in use. Last longer than alkaline batteries. Plug-in wall charger 100-240V, output 5V. Standard micro USB connector reduces errors from using wrong chargers. Protective processor shuts off charging of non-rechargeable batteries, eliminating battery leakage from charging non-rechargeable batteries. LED backlit VATN LCD, 50-220 BPM heart rate range, battery condition, volume, real-time signal strength. Extra wide angle, contrast ratio >150:1, true black background.
MADE in the USA
Purchase any four DigiDop units and receive the lowest-priced unit at no charge NOW THROUGH 6/30/26
Newman Medical DigiDop II Fetal Dopplers Technical Specifications
Order online, CHAT or call us at 1-800-860-4716 for help and more information. Purchase orders accepted from established USA customers.
Medical Resources is open 9:00 am to 6:30 pm EST Monday thru Friday to answer any questions or to help regarding any of our products! You may also e-mail us and we will get back with you as soon as possible, Contact Us!
FREE Ground Shipping from Medical Resources for all Newman Medical DigiDop II Fetal Doppler within the contiguous lower 48 states
