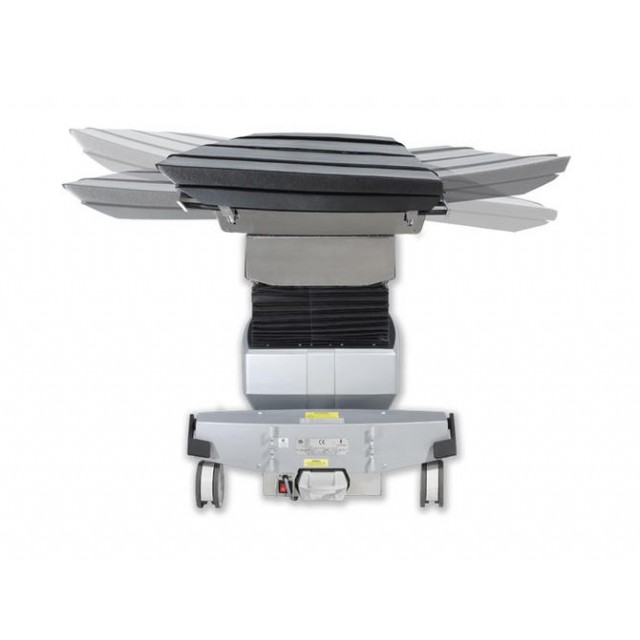

The extra-large radiolucent area, free-float X-Y tabletop, motorized control of height, lateral roll, Trendelenburg motions and the catheter tray extension makes the Biodex Surgical C-Arm Table Model 840 ideal for cardiovascular procedures. Features include:
Low attenuation carbon fiber tabletop, with innovative contour desgin
High speed actuators assure quick, three-axis motorized tabletop positioning
Three convenient positioning controllers
Free-float X-Y tabletop
Face cutout for comfortable prone positioning
Low profile base for C-Arm clearance
Accessory rails
Body restraining straps included for patient safety
Hand Control activates height, lateral roll and Trendelenburg motions of the tabletop
Foot Control activates all motions
Main Control Panel features an LCD screen that displays actual tabletop position )all axes) in real time and provides menus and prompts for other functions
Wheels - Head End: 3" swivel casters with integral locking system on base; Foot End: 5" locking swivel casters with central locking
500 lb patient capacity
Lift capacity may vary between 460 lb - 500 lb based on line voltage
Table dimensions: 104"L x 26"W with OR accessory rails
Mattress: 2" thick
Choice of 115 VAC or 230 VAC and battery. Battery automatically charges when table is plugged in. An additional battery can be charged with optional wall-mounted charger.
The Biodex Surgical C-Arm Table Model 840 comes with a 1 Year Warranty
As required by law, all Biodex C-Arm tables are CDRH registered and FDA Device Listed. All motorized tables are ETLproduct listed to the UL-60601-1 Medical Electrical Equipment Safety Standard
Standard Accessories:
- Catheter Tray Extension (removable): 18"L x 24"W non-radiolucent
- Bellows Skirt (disposable, 250/roll) and dispenser
Call Medical Resources at
1-800-860-4716 for any and all inquires regarding the Biodex Surgical C-Arm Table Model 840 as well as to place your order!
