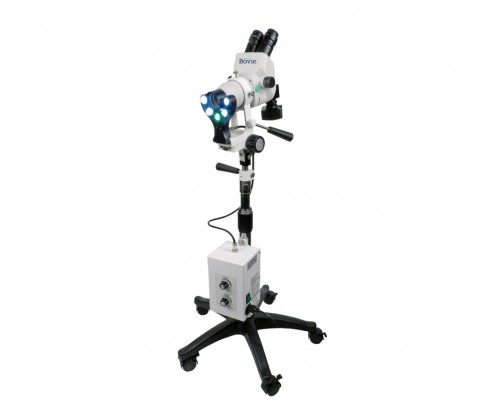

Aaron Bovie Colpo-Master II Colposcope, Zoom Magnification, LED Illumination
Center Post Mount
5 Leg Base

Ships in 5 days
FREE shipping
Bovie CS-205LED
Add to Cart
to See Price


Bovie Medical Corp

To buy, select quantities to the left

Office setup specials.

Product Description

The Aaron Bovie Colpo-Master II Colposcopes are a compact Center Post Colposcope with unique, continuous zoom magnification and sharp focusing for crisp 3-D imaging. Standard features of the Bovie Colpo-Master II Center Post Mount Colposcopes include:

  • Full, continuous zoom
  • 4 to 27X magnification with 20X eyepieces and sharp focus for 3-D imaging
  • The Colpo-Master II Colposcopes are available with Binocular Heads with 298 mm working distance
  • Field of view (FOV) ranges from 58.5 mm at 4X to 8.5 mm at 27X
  • All Bovie Colpo-Master II colposcope models are equipped with a 5 leg sturdy mobile base
  • Each model has dual diopter adjustments to independently adjust the focus of both Left and Right eyepieces to eliminate eyestrain
  • A super-bright 150W Quartz Halogen bulb or NEW Long Lasting and Brilliant LED power the fiber optic illumination
  • Variable intensity rheostat provides ample light for any application
  • Includes built-in green filter
  • Adjustable height center post with smooth suspension system
  • S-Video and digital camera options available, trinocular version with built-in C-Mount Camera adapter
  • Bovie Colpo-Master II Coloposcopes have a 7 Year Limited Warranty, 1 year on electrical system (excludes bulbs and fuses)


  • Bovie Colpo-Master II Center Post Mount Colposcope technical specifications
  • Heads: Binocular or Optional Video-Ready Trinocular with C-Mount (Call Medical Resources at 800-860-4716 for Information and Configuration Options)
  • Type of Stands: Center Post Stand (5 legged bases)
  • Optical System: Continuous Zoom with zoom ratio 1:6.7 (0.67x - 4.5x)
  • Magnification Range: 3.9x - 27x
  • Eyepieces: 20x Extra-widefield, 11.5 mm, with Diopter
  • Field of View (FOV): 58.5 mm at 3.9x to 8.5 mm at 27x
  • Working Distance: 298 mm (11.75")
  • Inclination of Head 45 - 90°, adjustable
  • Interpupillary Distance: 55 mm - 7 mm
  • Power Supply: 120V - 50/60Hz, 1.5 Amps
  • Fuse, Rating: 2 Amps, 250 Volt Fast Blow Fuse
  • Power Cord: Grounded 3-wire, 100 foot length
  • Overall Height: 53" - 44" (1345 mm - 1118 mm), Adjustable Height
  • Base Radius: 24" (610 mm), 5 legged base
  • Overall Radius: 24" (610 mm)
  • Weight (Total): 33 lbs fully assembled


  • Call Medical Resources at 1-800-860-4716 for any and all inquires regarding the Bovie Colpo-Master II Colposcope with Suspension Arm as well as to place your order!
