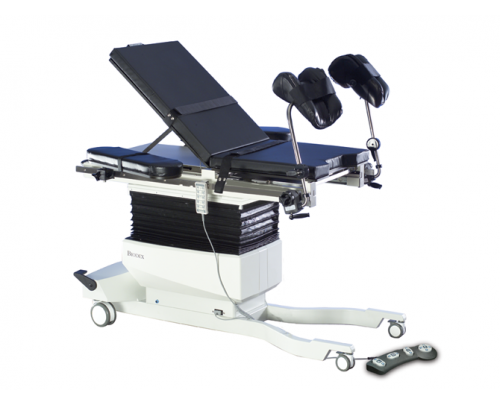

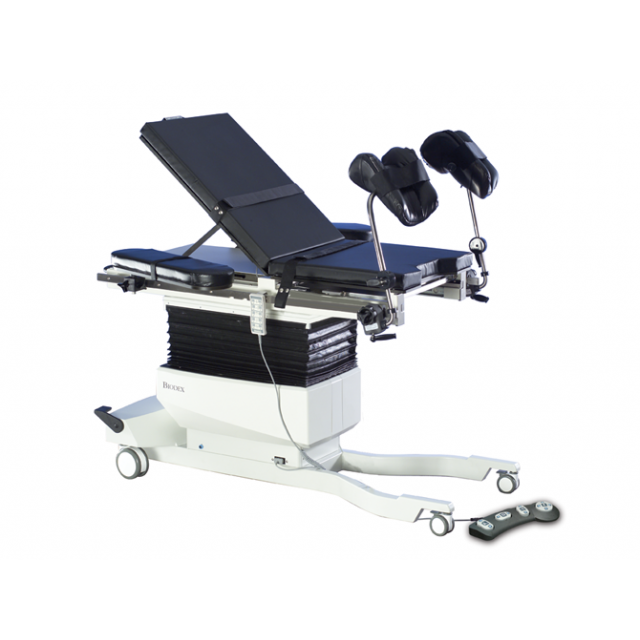

The narrow Fiberesin™ tabletop of the Biodex 058-810 Brachytherapy C-Arm Table is cantilevered to accommodate portable or ceiling suspended C-Arms. Radiolucent areas are free of cross members, allowing full fluoroscopic visualization and unobstructed C-Arm positioning. Functional design provides complete access while minimizing radiation exposure to clinicians.

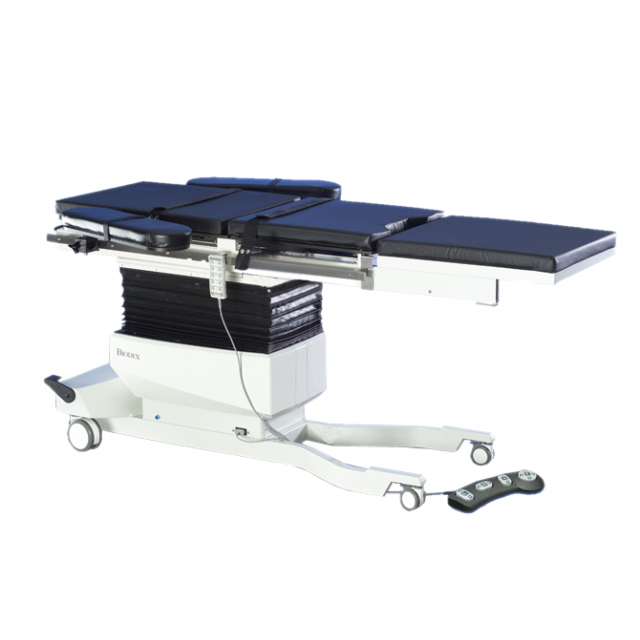

Designed an equipped specifically for seed implantation procedures, the Biodex 810 Brachytherapy C-Arm Table features a radiolucent extension that provides capability for brachytherapy treatment involving the upper body, as well as other general C-Arm applications. Motorized actuation of height, X-Y, lateral roll and Trendelenburg motions of the tabletop, with pre-programmed features, ensure quick and safe tabletop positioning during any phase of a procedure.
Large 54" x 17.5" radiolucent area
Fowler back (0° to 80°)
Five-axis motorized tabletop positioning
Four convenient positioning controllers (main panel control, joystick control with variable speed, hand-held controller and foot controller)
The main panel with backlit liquid crystal display mounts on either accessory rail. The LCD screen displays actual tabletop positions (all axes) in real time, and provides menus and prompts for other functions.
The portable hand-held and foot-operated controllers offer the freedom to adjust height, lateral roll, X-Y and Trendelenburg motions from positions away from the main panel, or when hands are busy with other functions
The Joystick controller for motorized X-Y positioning offers intuitive positioning with proportional speed control
Smooth starts and stops programmed into all motorized movements
Body Restraining Straps included for patient safety (Two body straps, two ankle straps)
Low profile base for C-Arm clearance
Open Leg Design for optimum positioning
Wheels: Front End-3" locking swivel casters, Front-End-5" swivel casters with central locking
Accessory rails included
Disposable Bellows Skirt included
2" thick mattress
400 lb patient capacity
Both AC and battery power are standard
Your choice of 115 VAC or 230 VAC and Battery. Battery automatically charges when table is plugged in. An additional battery can be purchased with optional wall-mounted charger.
As required by law, all Biodex C-Arm Tables are CDRH registered and FDA Device Listed. All motorized tables are ETL product listed to the UL-60601-1 Medical Electrical Equipment Safety Standard.
The Biodex Brachytherapy C-Arm Table Model 810 comes with a 1 year warranty
