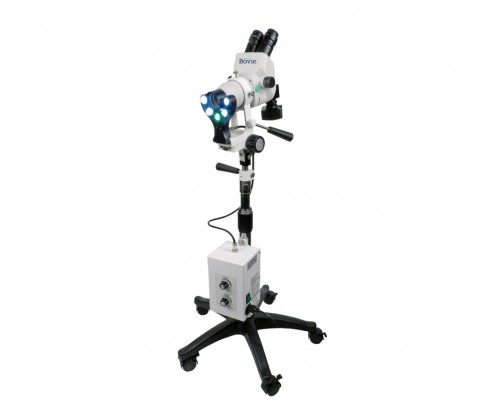

The Aaron Bovie Colpo-Master II Colposcopes are a compact Center Post Colposcope with unique, continuous zoom magnification and sharp focusing for crisp 3-D imaging. Standard features of the Bovie Colpo-Master II Center Post Mount Colposcopes include:
Full, continuous zoom
4 to 27X magnification with 20X eyepieces and sharp focus for 3-D imaging
The Colpo-Master II Colposcopes are available with Binocular Heads with 298 mm working distance
Field of view (FOV) ranges from 58.5 mm at 4X to 8.5 mm at 27X
All Bovie Colpo-Master II colposcope models are equipped with a 5 leg sturdy mobile base
Each model has dual diopter adjustments to independently adjust the focus of both Left and Right eyepieces to eliminate eyestrain
A super-bright 150W Quartz Halogen bulb or NEW Long Lasting and Brilliant LED power the fiber optic illumination
Variable intensity rheostat provides ample light for any application
Includes built-in green filter
Adjustable height center post with smooth suspension system
S-Video and digital camera options available, trinocular version with built-in C-Mount Camera adapter
Bovie Colpo-Master II Coloposcopes have a 7 Year Limited Warranty, 1 year on electrical system (excludes bulbs and fuses)
Bovie Colpo-Master II Center Post Mount Colposcope technical specifications
Heads: Binocular or Optional Video-Ready Trinocular with C-Mount (Call Medical Resources at 800-860-4716 for Information and Configuration Options)
Type of Stands: Center Post Stand (5 legged bases)
Optical System: Continuous Zoom with zoom ratio 1:6.7 (0.67x - 4.5x)
Magnification Range: 3.9x - 27x
Eyepieces: 20x Extra-widefield, 11.5 mm, with Diopter
Field of View (FOV): 58.5 mm at 3.9x to 8.5 mm at 27x
Working Distance: 298 mm (11.75")
Inclination of Head 45 - 90°, adjustable
Interpupillary Distance: 55 mm - 7 mm
Power Supply: 120V - 50/60Hz, 1.5 Amps
Fuse, Rating: 2 Amps, 250 Volt Fast Blow Fuse
Power Cord: Grounded 3-wire, 100 foot length
Overall Height: 53" - 44" (1345 mm - 1118 mm), Adjustable Height
Base Radius: 24" (610 mm), 5 legged base
Overall Radius: 24" (610 mm)
Weight (Total): 33 lbs fully assembled
